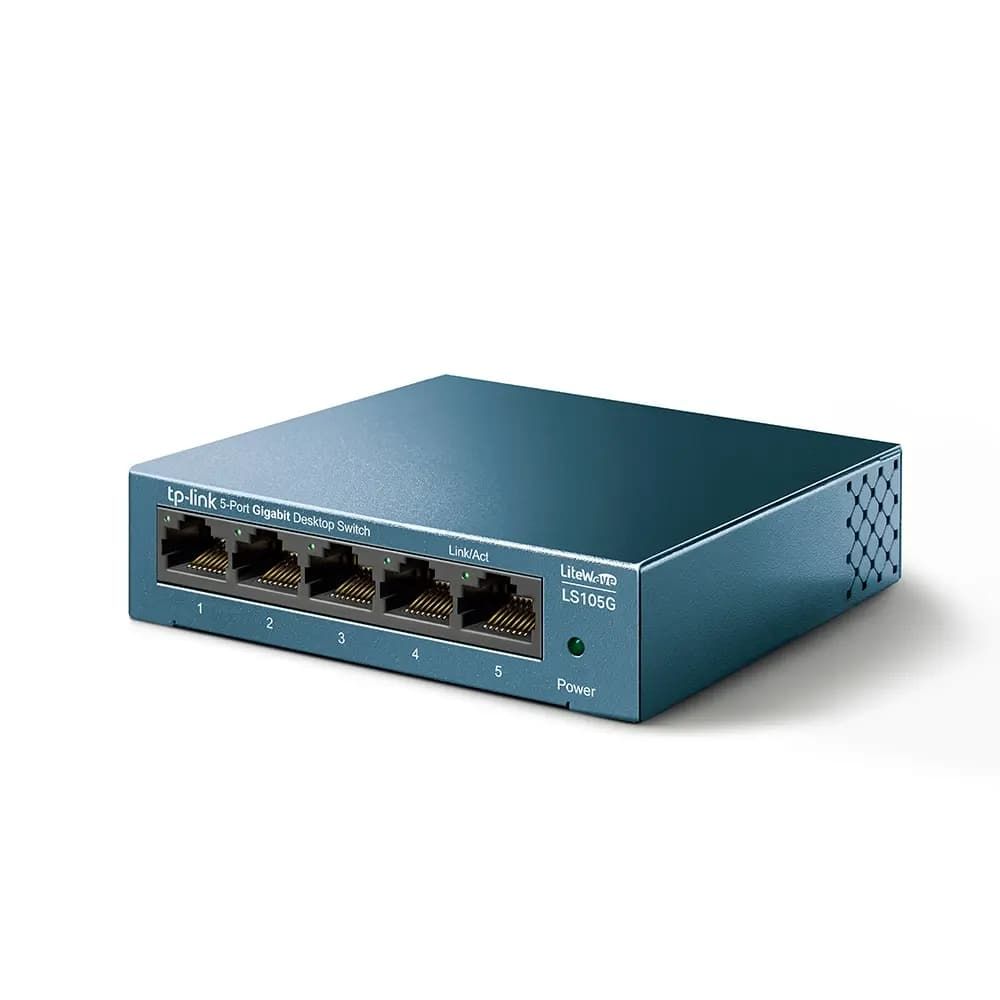

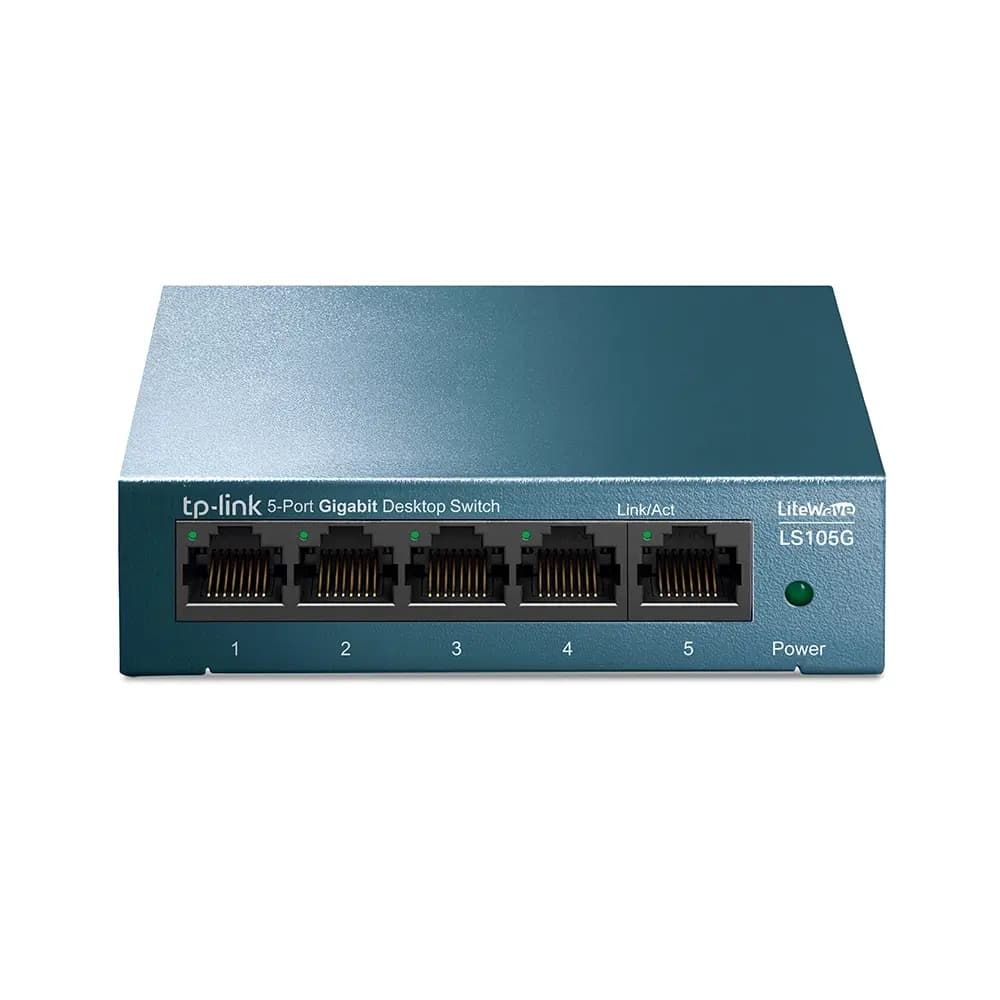

TP-Link LS105G, 5-Port Gigabit Switch

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Interface 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 5VDC / 0.6A)
LED System Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
Max. Power Consumption 2.776W (220V/50Hz)
Max. Heat Dissipation 9.466 BTU/h
PERFORMANCE

Packet Forwarding Rate 7.4 Mpps
MAC Address Table 2K
Packet Buffer Memory 1 Mb
Jumbo Frame 16 KB
SOFTWARE FEATURES

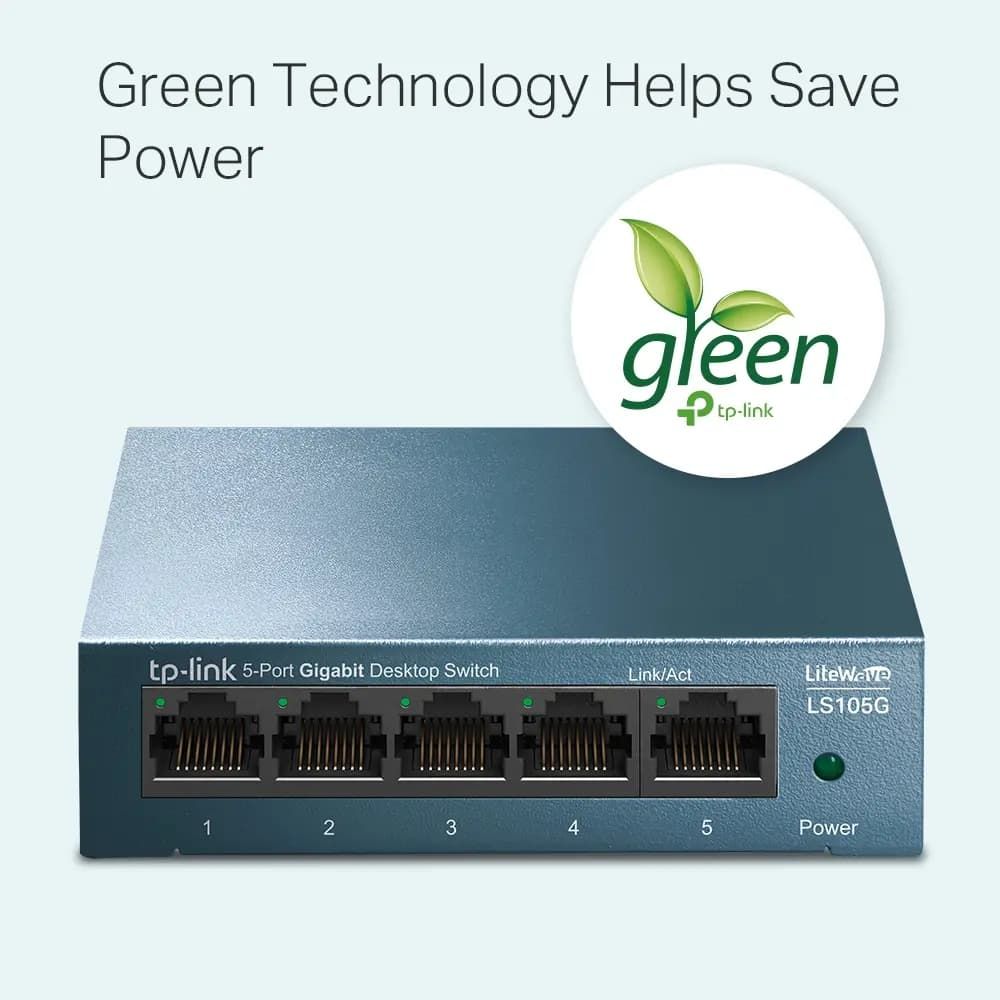

Advanced Features Green Technology
802.3X Flow Control
802.1P/DSCP QoS
Transmission Method Store and Forward
OTHERS

Certification CE, FCC, RoHS
Package Content 5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
