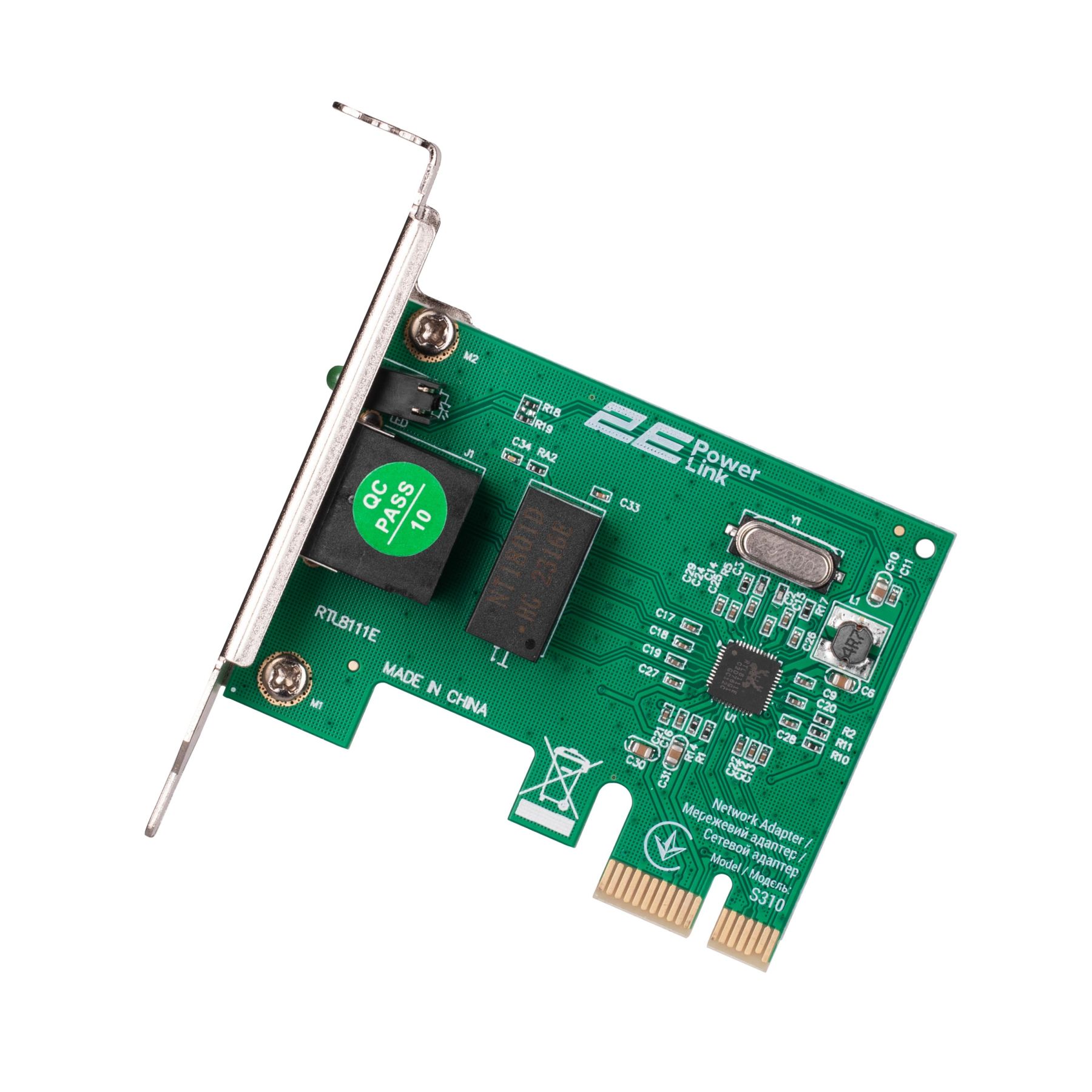

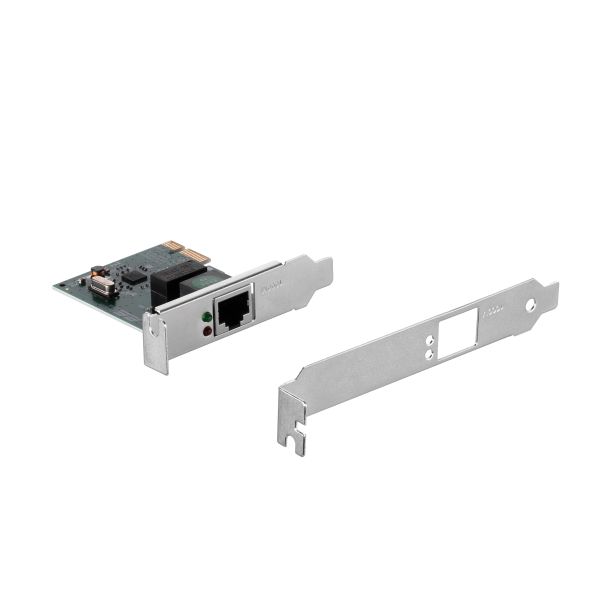

2E PowerLink Network Card S310 1xGE, PCI-Express x1

Type:network adapter
Appointment:internal
Support:Windows XP
Windows 7
Mac OS
Windows 8
Windows 10
Windows 11
Interface:PCI /Express 32-bit
Сhipset:RTL8111H
Network Standards Support:IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x Flow Control
802.1q
802.1p
Number of RJ-45 connectors:1 /10/100/1000 Mbps
Network Protocol Support:CSMA/CD
TCP/IP
Supported functions:Wake on LAN
Operating temperature:0°C - 40°C
Storage temperature:-40 to 70 °C
Data transfer speed:10/100 Mbps /Half-Duplex
20/200/2000 Mbps /Full-Duplex
Indicators:LED indicator: 1000M Link/Act, 100M Link/Act, Duplex
Cable types:10BASE-T: UTP cable categories 3, 4, 5 (max. length 100m)
EIA/TIA-568 100Ω STP (max. length 100m)
100BASE-TX: UTP cable categories 5, 5e (max. length 100m)
1000Base-T: UTP cable categories 5, 5e (max. length 100m)
Physical
Humidity:10% to 90% /when used without condensation
5% to 90% /when stored without condensation
Gross size
Width:120 mm
Height:30 mm
Length:130 mm
Weight:0.08 kg
Volume:0.0005 m3
