2E OD3000, 3000VA/2700W, LCD, USB, 4xSchuko

Basic
Device type :online with double conversion
View :UPS for servers and network equipment
Installation type :classic (tower)
Typical recharge time (up to 90%) :3 hours
KNS :≤ 2% /(linear load
≤ 5% /non-linear load
Overload :105% ~ 125% for 1 minute
125% ~ 150% for 30 seconds
> 150% for 300 ms
Exit
Input voltage range :176-280 V / without degradation of performance
110-176 V / linear derating between 50% and 100% load
280-300 V / reduction of nominal characteristics by 50%
Input frequency, Hz :40-70 /automatic detection
Maximum current :1 A
Entrance
Output voltage :220 V
230 V
240 V
208 V
Max output power :3000 VA
Effective output power :2700 W
Output frequency, Hz :50-60 /± 0.1 Hz (battery mode)
45-55 /synchronized range
55-65 /synchronized range
Maximum efficiency :≥ 92% /(Mains power mode)
≥ 87% /(Battery mode)
≥ 97% /(ECO mode)
Power output connector type :SCHUKO /x4
Battery
Batteries installed :6 pcs x 12 V 9 Ah
Connecting an external battery :ico-check 6 pcs x 12 V 9 Ah (optional)
Protection
Protection :short circuit protection
overcharge/discharge protection/fan check
overcharge protection
IP20
Additionally
Interface :USB
RS-232
optional SNMP adapter
Additionally :microprocessor control
ECO mode
Physical
Display :ico-check LCD
Noise level :50 dB
Operating temperature :0-40 °C
Relative humidity :0-95% (non-condensing)
Color :black
Dimensions (HxWxD) :335 x 191 x 418 mm
Battery warranty :1 year (2 years on electronics)
Weight :27.2 kg
Gross dimensions
Width :280 mm
Height :440 mm
Length :500 mm
Weight :26.62 kg
Volume :0.0616 m3
Guarantee

The war in Ukraine is not over, the enemy continues to destroy critical infrastructure, in particular the country's energy system facilities. In order to restore the damaged and ensure the stability of the energy system, energy workers resort to fanning out, and sometimes emergency shutdowns. Ukrainians are understanding of the proposed measures and are trying to adapt to new realities: they are looking for solutions to provide electricity not only to their own homes, but also to critically important public institutions such as hospitals, medical centers, and to meet the needs of businesses.
22766 UAH*
expected
Where to buy
Report availability
* Recommended retail price

Where to buy: Uninterruptible power supply 2E OD3000, 3000VA/2700W, LCD, USB, 4xSchuko:
Online stores
Vencon.ua
Go to store
2E OD3000, 3000VA/2700W, LCD, USB, 3xSchuko (2E-OD3000)
aquaclimat.com.ua
Go to store
Uninterruptible power supply 2E OD3000, 3000VA/2700W, LCD, USB, 4xSchuko
nasha-stroyka.com.ua
Go to store
Uninterruptible power supply 2E OD3000 3000VA/2700W (2E-OD3000)
National networks
Epicenter
Go to store
Uninterruptible power supply (UPS) 2E 2E-OD3000
See all

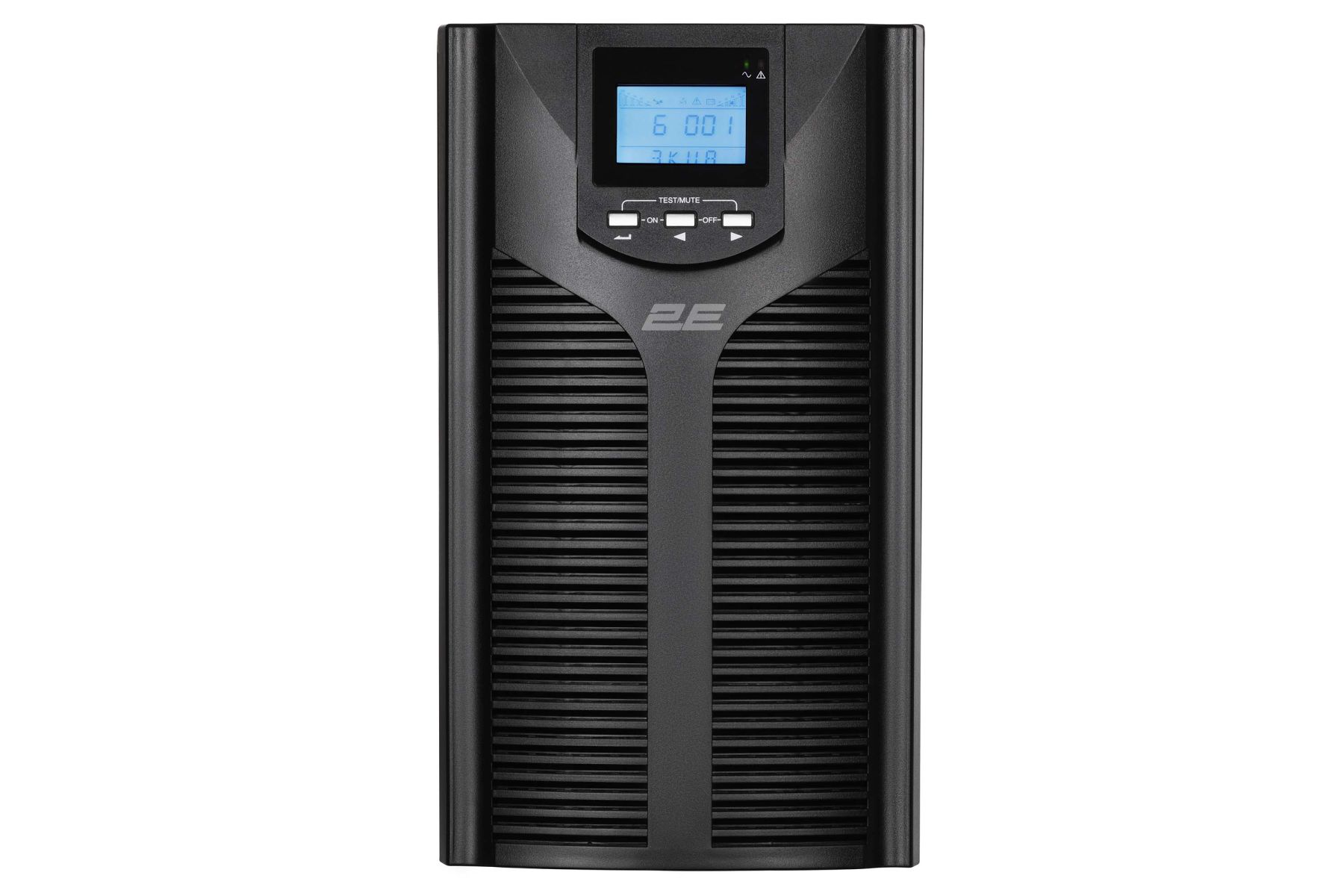

Description Uninterruptible power supply 2E OD3000, 3000VA/2700W, LCD, USB, 4xSchuko
Given the military present, the 2E brand uninterruptible power supply is a "musthave" for almost everyone. The model has a capacity of 3,000 VA/2,700 W. Type 2E OD3000: online with double conversion. The main advantage of devices of this type is the ability not only to prevent power outages for important "consumers", but also to significantly improve the quality of the supplied current. The UPS converts the input 110 ~ 300 V AC and outputs the necessary ideal 208/220/230/240 V (voltage adjustment is possible). The absence of switching between modes (from the network to the battery) allows you to minimize the risk of damage to "sensitive" equipment. In particular, such UPS are used for uninterrupted power supply of medical equipment, for data centers and enterprises with a continuous production cycle.

The operating frequency range of the 2E OD3000 model is within 40 ~ 70 Hz (automatic detection). If the device's inverter fails or the input current has too high a voltage, bypass mode is automatically activated: the bypass voltage range is -25% ~ +15%. The UPS is equipped with six batteries (12 W/9 A·h), which restore the charge to 90% in just 3 hours! The charging current (max.) is 1 A. In addition, there are three Schuko sockets, RS-232, USB and optional SNMP adapter connectors. The front panel has a built-in LCD display, which displays the device's operating status, including error codes.

With a weight of 27.2 kg, the device has dimensions of 191 × 418 × 335 mm. Installation type: TOWER. Noise level – 50 dB. The product has an IP20 protection degree, as well as protection against short circuit, overload, overheating, deep battery discharge and the ability to check the fan. In emergency cases, if the UPS needs to be turned off, users can use the EPO port, which is built into the rear panel.
